The Cirrus Factory in 2001

0

In February 2001 I visited the Cirrus Design (today: Cirrus Aircraft) factory in Duluth, MN., for the third time. In 1996 i had been the first European journalist to fly the SR20 prototype, and on this third visit the new SR22 was already in production. One of the aircraft on the production line was SR22 “N701CD”, and I think it’s funny that it was this SR22 of the first generation I would fly in the Netherlands some months later.

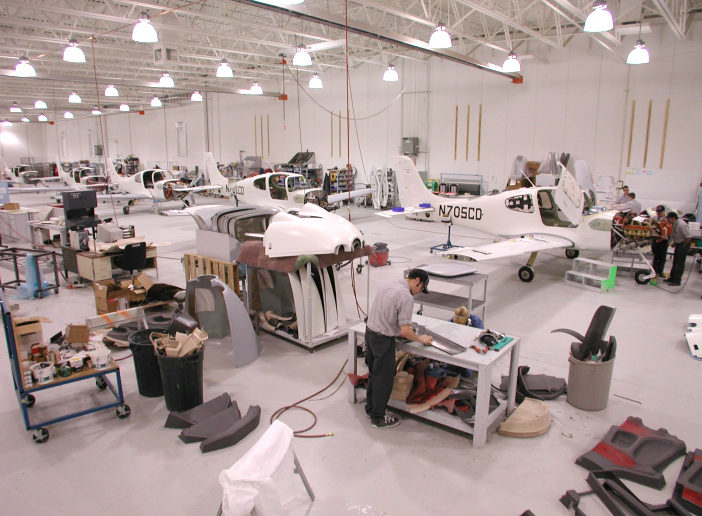

01CIRPRO045

The Cirrus production line in February 2001

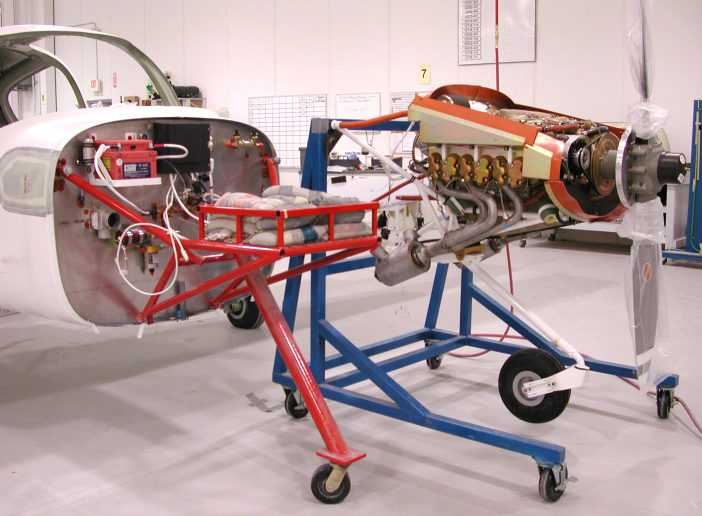

01CIRPRO049

Engine, engine mount and nose landing gear section ready for installation

01CIRPRO047

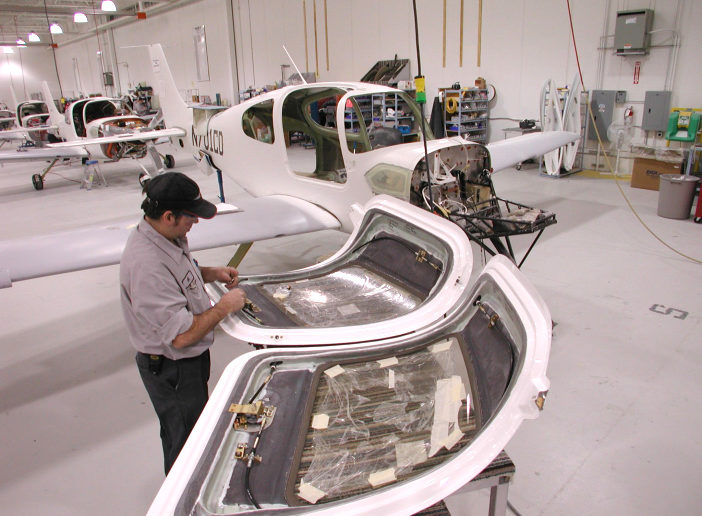

Preparing doors for installation

01CIRPRO042

One of the first SR22s

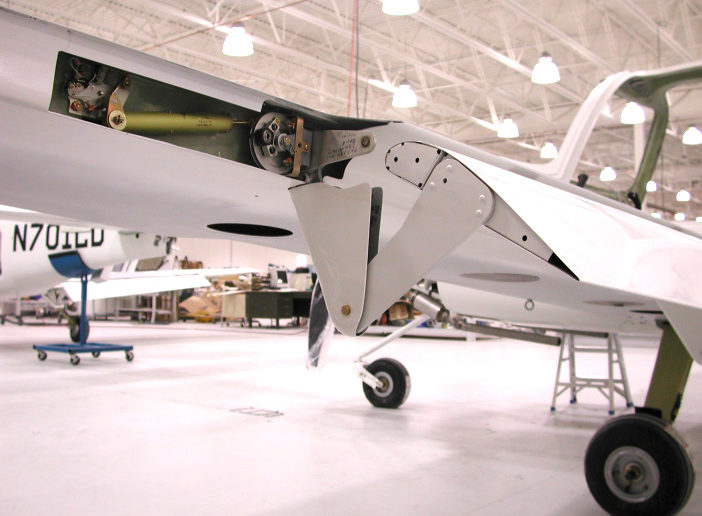

01CIRPRO031

Left aileron still missing, picture showing aileron trim system

01CIRPRO029

SR20 engine before installation

01CIRPRO025

Wing with pitot tube installation

01CIRPRO023

CAPS straps are already laminated over

01CIRPRO021

Fuselage before wing and landing gear installation

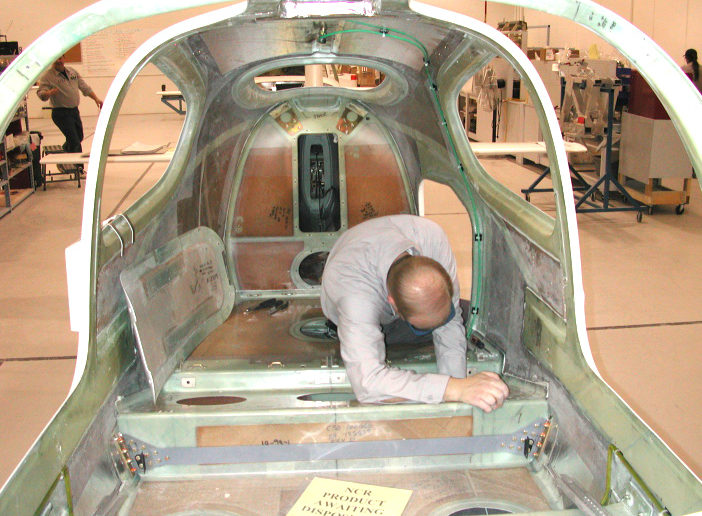

01CIRPRO020

Inside the fuselage

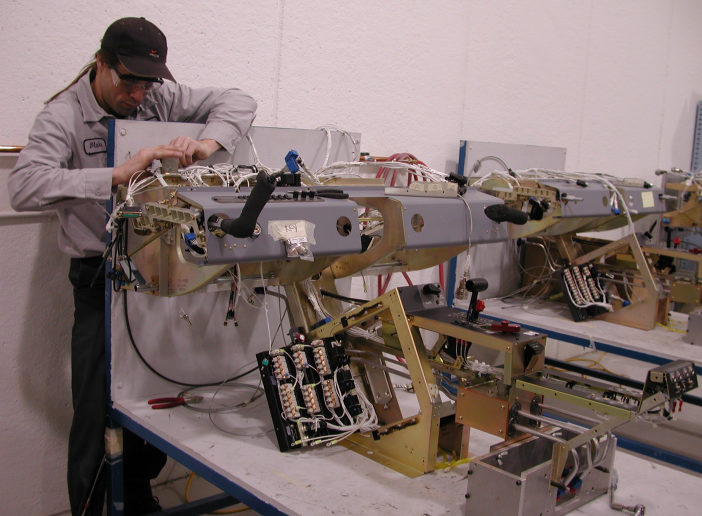

01CIRPRO018

Avionics console and panel structure almost ready for installation

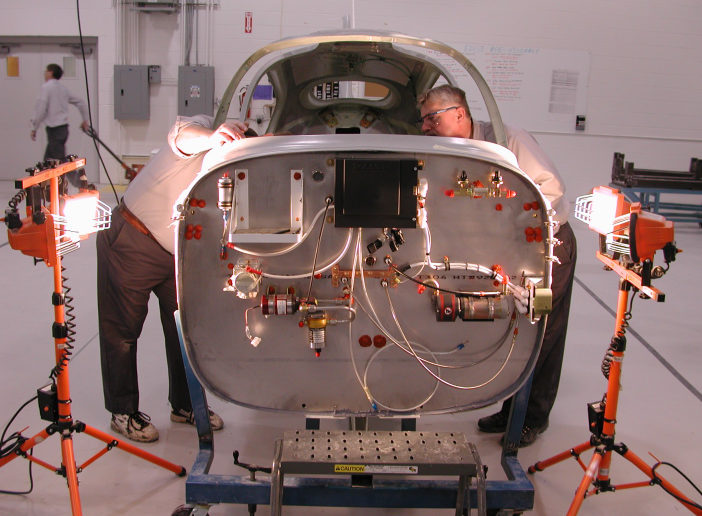

01CIRPRO016

Firewall

01CIRPRO011

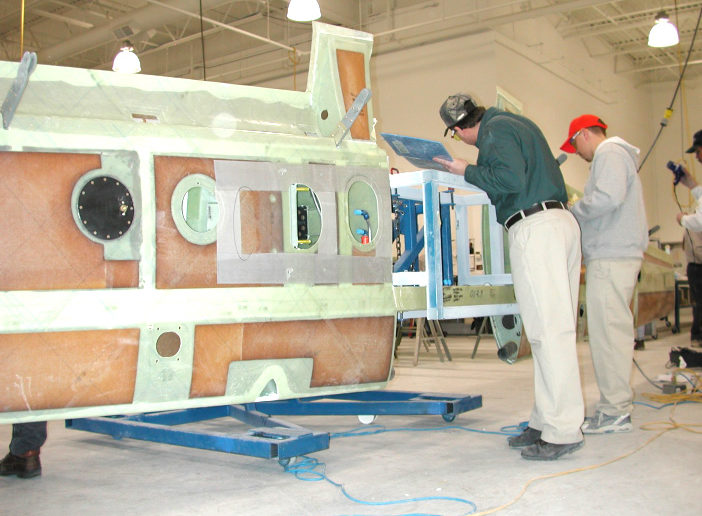

Wing before installation

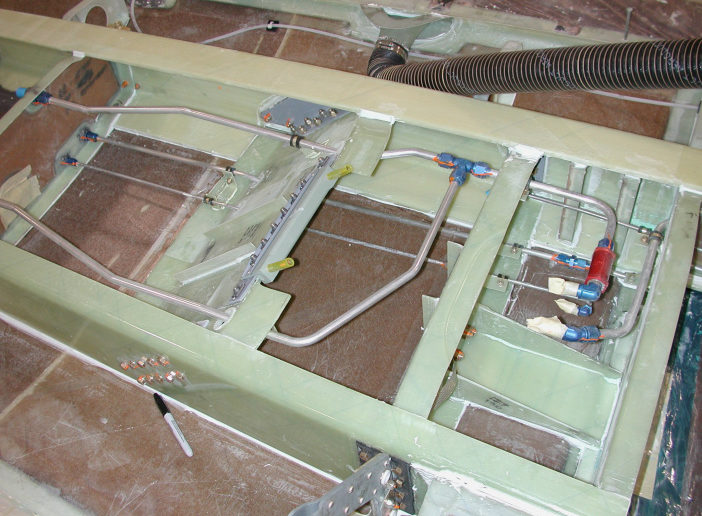

01CIRPRO010

Fuel tanks and fuel lines

01CIRPRO009

The spar is beeing built. All G2s and G2s had fibre glass spars. Later G3s had a Carbon fibre spar that saves a lot of weight for additional payload

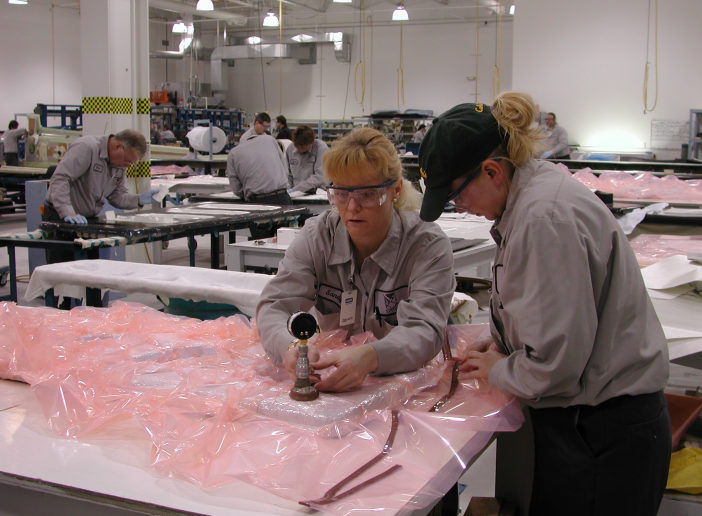

01CIRPRO005

Fibre glass work

(More pictures will be edited once I have time to edit them!)
